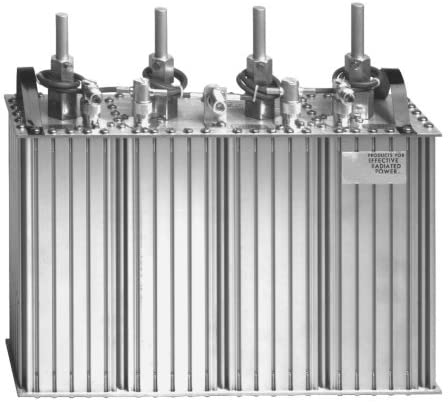

Sinclair - 160-174 MHz Pass Reject Duplexer - Q-2222E-2

Sinclair

Sinclair - 160-174 MHz Pass Reject Duplexer - Q-2222E-2

$ 2,121.68

Sinclair - 160-174 MHz Pass Reject Duplexer - Q-2222E-2

Pass- reject type. 4 cavity. 120 W. 3 MHz min. separation. 0.8 dB loss. N/female connector.

***Please specify transmit and receive frequencies for tuning***

***The item may not be canceled or returned once ordered***


Technical Specs

  • Item Height
    4.17 in
  • Minimum Isolation
    75 dB
  • RF Connectors
    N Female
  • Minimum Separation
    3
  • Maximum VSWR
    1.5:1
  • Maximum Power Input
    120 W
  • Item Width
    19 in
  • Item Length
    17 in
  • Insertion Loss (Rx/Ant-dB)
    0.8
  • Number of Cavities
    4
  • Frequency Range
    160-174 MHz
  • Insertion Loss (Tx/Ant-dB)
    0.8
