Ventev / TerraWave - 3/8" TWS-400 50 Ohm Braided Cable

TerraWave

Ventev / TerraWave - 3/8" TWS-400 50 Ohm Braided Cable

$ 1.19

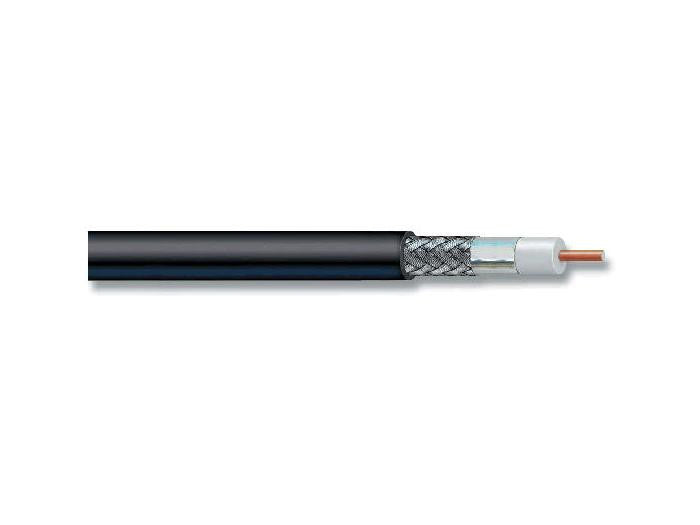

The Ventev / TerraWave TWS-400 braided coaxial cable is low loss. This 3/8 inch 50 Ohm coax cable has a stranded outer conductor and a bare copper center conductor. A 90 percent coverage braided shield prevents loss.

This low loss cable offers similar performance compared to corrugated copper cables but provides higher flexibility (1 inch bending radius) and simplified connectorization. It can be used in almost any application where handling characteristics, improved shielding and low loss is required.

The TerraWave TWS-400 low loss braided coax cable is available in bulk and is priced per foot.

Cable cannot be canceled or returned once cut to length**

Cable Type TWS-400
Dielectric Insulation FEP
Center Conductor Material Copper Clad Aluminum
Center Conductor Diameter 0.108 in
Center Conductor Construction Solid
Nominal Core O.D. 0.291 in.
Nominal O.D. 0.405 in
VOP 85 %
Shield % 90%
Nominal Capacitance (pF/ft) 23.9
Loss @ 50 MHz 0.9
Loss @ 100 MHz 1.2 dB
Loss @ 400 MHz 2.5 dB
Loss @ 900 MHz 3.9 dB
Loss @ 1000 MHz 4.1
Sold By Per Foot
Strip Tool #HT-322S3
Mfg. Warranty 7 Years
