Newmar

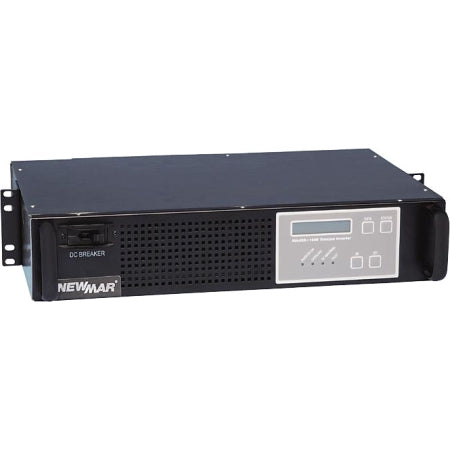

NEWMAR - DC-AC 2 kVA/1600 W rack mount inverter - 48-2000RM
NEWMAR - DC-AC 2 kVA/1600 W rack mount inverter - 48-2000RM
Specifications: Rackmount Telecom Inverters – 2RU Series
| Model | DC Input | AC Output | Weight(lbs.) | |||
|---|---|---|---|---|---|---|
| Voltage | Amps | Voltage | KVA | Watts | ||
| 24-1000RM | 20-30 | 50 | 115 VAC, 60 Hz. | 1 KVA | 800 | 15.4 |
| 48-1000RM | 40-60 | 25 | 115 VAC, 60 Hz. | 1 KVA | 800 | 15.4 |
| 48-1000IRM† | 40-60 | 25 | 230 VAC, 50 Hz.** | 1 KVA | 800 | 15.4 |
| 48-2000RM | 40-60 | 50 | 115 VAC, 60 Hz. | 2 KVA | 1600 | 17.6 |
| 48-2000IRM† | 40-60 | 50 | 230 VAC, 50 Hz.** | 2 KVA | 1600 | 17.6 |
| 125-1000RM† | 100-150 | 10 | 115 VAC, 60 Hz. | 1 KVA | 800 | 15.4 |
| 125-2000RM† | 100-150 | 20 | 115 VAC, 60 Hz. | 2 KVA | 1600 | 17.6 |
- Pure sine wave AC output powers telecom equipment without performance degradation
- Continuous duty rated – full output wattage maintained even during extended power outages
- 1000 VA and 2000 VA models available – easily cascaded for N+1 redundancy, providing maximum reliability
required by data centers - Low EMI and RFI interference characteristics
- User-friendly Status and Diagnostic LCD/LED displays
- Utility bypass function with fast load transfer switch
- Remote Power Management optional via RS-232 port
- Optional SNMP card
- Numerous circuit and load protections – over-current, over- temp, overload, reverse polarity, high/low battery
voltage - Form C alarm contacts for monitoring AC “Fault” and “DC Abnormal” conditions
- Adapts for 19” or 23” racks; occupies only 2 RU (3.5”)
- UL and cUL listed, CE marked, and RoHS Compliant
https://www.poweringthenetwork.com/wp-content/uploads/2015/05/Newmar_Rackmount_Inverters.pdf
